Make your own Quantum ESPRESSO compilation

Overview

This guide will walk through compiling Quantum Espresso with the following options

compiled with Intel OneAPI libraries
signal trapping: This enables QE to recognize common signals sent by job schedulers (e.g., SIGTERM) and exit gracefully
exit statuses
libxc support: This expands the library of functionals that can be used
Environ: This compiles Quantum Espresso with the Environ library, enabling the use of advanced solvent models (e.g., SCCS, SSCS)

Tips

You may need to replace def-samiras with a valid project directory. To see which project directories are available, run:

ls ~/projects

Note

As of 2024/10/20, the installation instructions for Environ on the documentation are out-of-date for Environ 3+. The GitHub repository contains sparse instructions for Environ 3+ here.

A good practice for managing the installed software is to store the raw source code in a separate folder from where it is installed. For example, one can keep the pre-compiled source code in a software_support folder and install the software in a software folder. In this way, if one ever has to compile the software, they can simply delete the associated subdirectory in software without having to worry about the source code. Additionally, for large source codebases, one can archive the directory in software_support to conserve the file quota. This can be done for the Intel OneAPI, QuantumEspresso, and libxc software in this tutorial.

Step-by-Step

👩‍💻 Here's a (not really) quick step-by-step to compile Quantum Espresso (QE) 7.3.1 👩‍💻

Download the Intel OneAPI libraries from here.
Copy the folder/archive of Intel OneAPI files to where you will install QE. This may be in your home directory (e.g., /home/USER) or a subdirectory of your project folder (e.g., /home/USER/projects/def-samiras/USER/software_support).
```
scp -r oneapi_archive USER@cedar.computecanada.ca:/home/USER/
```
where USER is your Digital Research Alliance (DRA) username.

Note

These libraries are from the OneAPI suite, however, only the current year's libraries are available for download for free. The 2024 libraries were tested and they did not work for QE compilation on Cedar. The 2022 libraries have been confirmed to have worked. Both the 2022 and 2023 libraries are included in the shared folder from step 1.
Install the Base Toolkit. (This could take up to 30 minutes.) Navigate to where you copied the folder on Cedar
```
$SHELL l_BaseKit_p_2022.1.1.119.sh
```
This will install the Base Toolkit under the directory /home/USER/intel/oneapi (where USER is your DRA username).

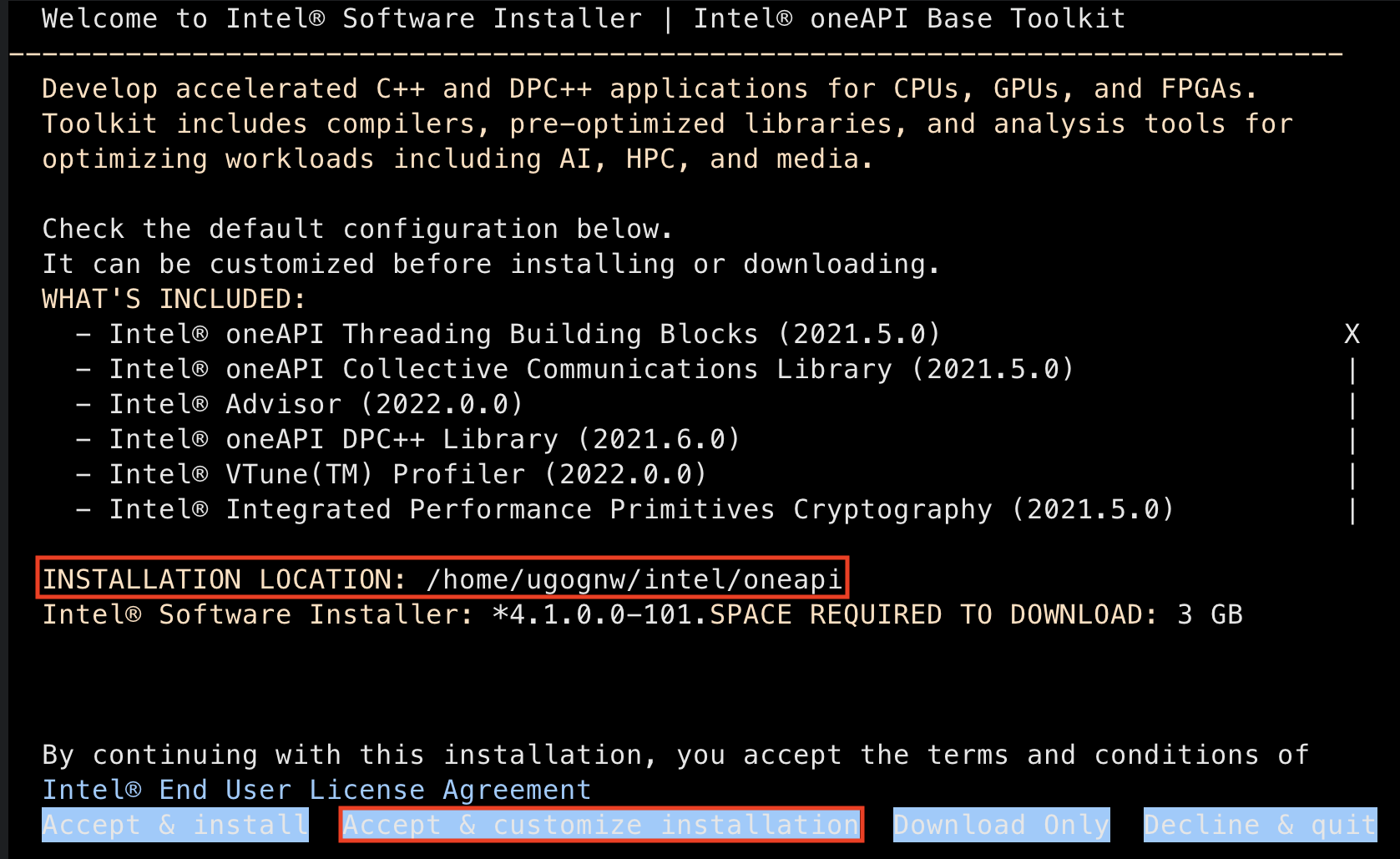

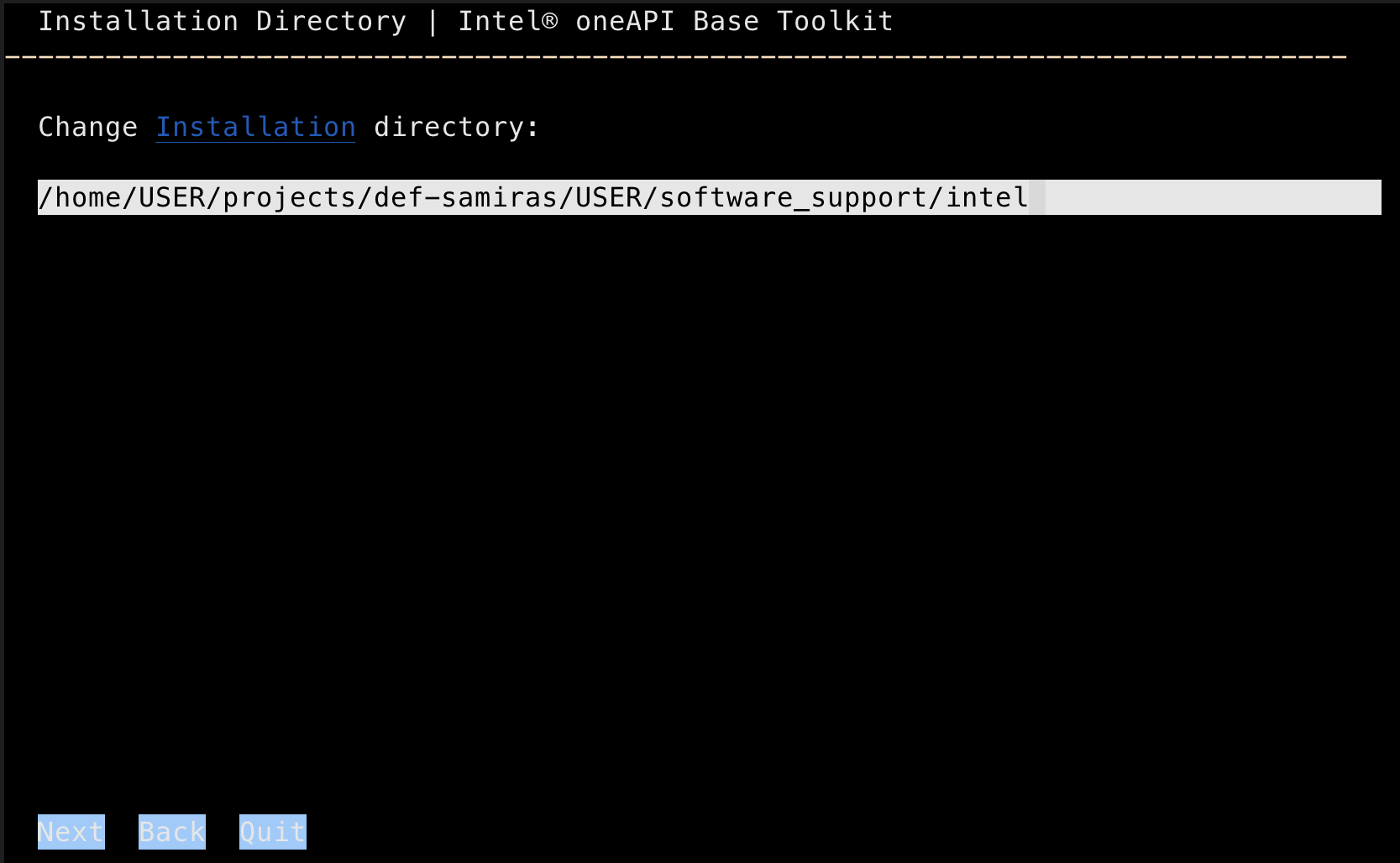

Optionally, you can change the installation location by opting to customize the installation (select "Accept & customize installation" prior to starting the installation process).

You may want to do this if you would like the libraries to be accessible for others, in which case, change the default installation directory to a subdirectory of the project folder. For example,

Warning

You may receive warnings about the operating system being "Unknown" or missing packages required for the Intel® VTune(TM) Profiler, but you can ignore these.
Install the HPC Toolkit. (This shouldn't take more than a few minutes.)
```
$SHELL l_HPCKit_p_2022.1.1.97.sh
```
Again, you may want to specify a custom installation location. In that case, it is reasonable to create a oneapi directory as a subdirectory of the custom location specified for the Base Toolkit and use this as the installation location.

At this point, the directory that was chosen as the installation location should be populated with the Intel libraries, and there should be a file called setvars.sh, which when sourced (e.g., source setvars.sh), should give you a list of modules loaded in the environment. Check this step prior to QE compilation.
Download Quantum Espresso 7.3.1. You can get QE here. Alternatively, you can just go to their homepage, register your email, and go to Downloads > to find the latest version.
Copy the downloaded QE.tar file to Cedar and extract it.
Forcibly purge your loaded modules and reload the Gentoo Linux module.
```
module --force purge
module load gentoo
```
Important

The main problem with Cedar seems to be some library/ies dependency, so make sure you run module --force purge before moving on.

Note

The Gentoo Linux module provides access to the git CLI utility which is needed to configure the Environ module.
Setup the Intel environment.
```
source /path/to/setvars.sh
```
Locate the root directory for libxc. On Cedar, this directory is found at /cvmfs/soft.computecanada.ca/easybuild/software/2023/x86-64-v3/Compiler/gcc12/libxc/6.2.2

Note

The latest version of libxc (7.0.0) is not installed on Cedar. However, installing libxc is quite straightforward. Instructions can be found here.
Ensure that the local language is set to the standard, i.e. ”C”.
```
export LC_ALL=C
```
Obtain a copy of Environ 3+ and copy it to the QE folder. You can either clone it from the git repository by running this command from inside of the QE folder.
```
git clone https://github.com/environ-developers/Environ.git
```
or you can download an archive, copy it to Cedar, and then extract it into the QE folder.

Warning

The Environ folder should be inside of the Quantum Espresso folder (e.g., qe-X.Y.Z/Environ).
Configure the QE compilation.

For clarity, we define variables for the location of the Intel Base Toolkit and where you would like to install the QE binaries. If you didn't modify the default directory where the Intel libraries are installed, then you should define intel_dir as:
```
intel_dir=/home/$USER/intel/oneapi
```
If you used a custom directory, your variable definition may look like this:
```
intel_dir=/home/$USER/projects/def-samiras/$USER/software/intel-2022.1.1
```
Next, specify a path (outside of the current directory) where you would like to install the QE executables.
```
espresso_dir=/home/$USER/projects/def-samiras/$USER/software/espresso-X.Y.Z
```
Note

These directories must be absolute paths (i.e., starting with /).

Run the configure script from inside the qe-X.Y.Z folder (where X.Y.Z is the QE version number).
```
./configure LIBDIRS="$intel_dir/mkl $intel_dir/mpi $intel_dir/compiler" --enable-parallel --with-scalapack=intel FC=ifort F90=ifort mpif90=mpiifort CC=icc mpicc=mpiicc --enable-signals --enable-exit-status --prefix=$espresso_dir
```
Note

This will take a while, (between minutes and hour-ish), so be sure to have some time at this step. Keep an eye on what will come up at the screen, because this will inform whether or not QE found the libraries you told it to, or if it skipped any of them. It will also let you know if the parallel compilation was successfully identified (QE has different compilations for serial and parallel execution). Make sure it found all dependencies you need before moving on. If you are unable to see all the output from the command in your terminal, it may be useful to redirect the standard output and standard error from the ./configure comand to a file:
```
./configure LIBDIRS="$intel_dir/mkl $intel_dir/mpi $intel_dir/compiler" --enable-parallel --with-scalapack=intel FC=ifort F90=ifort mpif90=mpiifort CC=icc mpicc=mpiicc --enable-signals --enable-exit-status --prefix=$espresso_dir >&espresso.log
```
This command will redirect all the configuration information to espresso.log.
Modify the make.inc file to configure libxc.

This includes:
- adding -D__LIBXC to DFLAGS
- adding -I/path/to/libxc/include to IFLAGS
- setting LD_LIBS=-L/path/to/libxc/lib -lxcf03 -lxc
Note that /path/to/libxc should be the path determined in Step 9.
Configure Environ.

Change the current directory to inside the Environ folder and run:
```
./configure LIBDIRS="$intel_dir/mkl $intel_dir/mpi $intel_dir/compiler" --enable-parallel FC=ifort F90=ifort mpif90=mpiifort CC=icc mpicc=mpiicc --prefix=$espresso_dir
```
Note

It is very important to use the same libraries and parallelization flags for Environ as for QE.
Compile Environ.
```
make -jN compile
```
where N is the number of processors to use for parallel compilation.
Build the QE executables.
```
make all
```
The QE manual is really good and useful and easy to follow, in case you want to test different things on your own.

You can also compile their default version, which is mostly foolproof and easy, and test it. It usually finds its own way and works well. Beware that there is a problem with library dependencies in the cluster, so if you compile the default version, it will have the same libraries as the cluster version and likely have the same issues!
Note

To speed up the installation, you can spawn an interactive job with multiple cores and run make in parallel. For example, if you want to spawn a job with 16 cores, do the following:
```
salloc --mem=32GB --ntasks-per-node=16 --nodes=1 --account=def-samiras --time=00:10:00
make -j16 all
```
I've found that this scales linearly, with 32 cores taking about 2 minutes to complete.
Install the executables.
```
make install
```
This step copies the built executables to the directory specified by the --prefix option (the espresso_dir variable defined in Step 11).

Modulefiles

Recall that the setvars.sh script must be sourced prior to executing QE in order to setup the Intel environment for Quantum Espresso. This has a few disadvantages, the most significant of which being that there is no straightforward way to undo the changes. Additionally, there is the issue of convenience and portability due to having to specify the exact location of the setvars.sh script in order to source it. This section covers how to create modulefiles for Quantum Espresso and the Intel OneAPI libraries.

Intel OneAPI

Modulefiles solve the above problems and offer some additional benefits. In short, modulefiles provide a convenient way to dynamically change the user's environment. This may involve modifying environment variables, defining shell functions, or loading other modulefiles. The Digital Research Alliance clusters use Lmod to manage modulefiles. Lmod provides the sh_to_modulefile utility. See this tip for how to convert setvars.sh into a modulefile.

Once you have created the modulefile, ensure that the file is in your MODULEPATH (this is controlled by the command module use). A reasonable strategy is to name the modulefile after the version of the libraries (e.g., 2022.1.1) and to place this file in a subdirectory of a path in MODULEPATH. The name of the subdirectory will be the name used to load the module (i.e., set up the environment), so a reasonable name would be something like intel. Additionally, it's useful to add the following metadata to the modulefile:

intel/2022.1.1.lua

help([[
Description
===========
Intel C, C++ & Fortran compilers (classic and oneAPI)


More information
================
 - Homepage: https://software.intel.com/content/www/us/en/develop/tools/oneapi/hpc-toolkit.html
]])
whatis("Description: Intel C, C++ & Fortran compilers (classic and oneAPI)")
whatis("Homepage: https://software.intel.com/content/www/us/en/develop/tools/oneapi/hpc-toolkit.html")
whatis("URL: https://software.intel.com/content/www/us/en/develop/tools/oneapi/hpc-toolkit.html")
whatis("Version: 2022.1.1")
whatis("Keywords: HPC")
conflict("intel")

This mostly just descriptive information about the module. The last line ensures that you don't load conflicting modules and is especially helpful since we've had troubles with the default DRA libraries. An error will be thrown if you try to load this module when another version is already loaded.

If you placed the created file in a directory called intel in your MODULEPATH and called the file 2022.1.1 (after the version of the Intel OneAPI libraries), then you perform the required set up with the command:

module load intel/2022.1.1

Quantum Espresso

You can also define a modulefile for your newly installed version of Quantum Espresso. Essentially, the only necessary change that must be made is to prepend the directory containing QE executables to the PATH environment variable. A sample modulefile is shown below:

espresso/7.3.1.lua

help([[
For detailed instructions, go to:
    https://www.quantum-espresso.org/documentation/package-specific-documentation/

]])

whatis("Version: 7.3.1")
whatis("Keywords: QuantumEspresso")

conflict("quantumespresso")
conflict("espresso")

depends_on("intel/2022.1.1")
prepend_path("PATH", "espresso_dir/bin")

Here, espresso_dir should be replaced with the path used to define espresso_dir in Step 11. Also, note that the DRA module is named quantumespresso whereas this module is named espresso. The conflict commands reflect this fact. This is beneficial (but not necessary) since ASE's Quantum Espresso calculator class is called Espresso, so both Python and SLURM submission scripts can be templated with the same variable. Finally, note that this modulefile "depends_on" the intel/2022.1.1 modulefile. This ensures that the intel/2022.1.1 module is loaded prior to loading the espresso module Optionally, one can explicitly load the intel module by replacing that depends_on with load.

Running a sample calculation

The following commands should be added to your SLURM submission script to run calculations with QE.

module --force purge
source /home/USER/intel/oneapi/setvars.sh
export PATH=$PATH:/home/USER/qe-7.3.1/bin/
export PATH=$PATH:/home/USER/intel/oneapi/mpi/2021.5.0/bin
/home/YOUR$USERNAME/intel/oneapi/mpi/2021.5.0/bin/mpirun pw.x < espresso.in > espresso.out

where USER is your DRA username.

If you've defined modules as indicated above, add the following commands instead.

module --force purge
module load gentoo intel/2022.1.1 espresso/7.3.1
mpirun pw.x

If running Quantum Espresso with ASE in a script called run.py, add the following commands instead.

module --force purge
module load gentoo intel/2022.1.1 espresso/7.3.1

# Load your Python environment here, if necessary

python3 run.py

If you changed the depends_on command to load, then you don't need to load the intel module.

Benchmarking

Finally, benchmark and test its performance using their provided examples or your job. What to look for:

The performance should be equivalent to their examples for simple structures with similar parameters. For unit cells, it is useless to scale up too many cores, so test it with few at first (1 core vs 2 vs 4, for example). Check the last lines of the out file the total CPU time and resources. If the performance is worse with more cores, the compilation is not good.
Check the performance of a decent sized job with your compilation against the one available in Cedar, the time should be around half but it will also depend on your own system (it was half for mine with a ~100 atoms supercell). If it is similar to Cedar, or worse, again, the compilation it not good.
